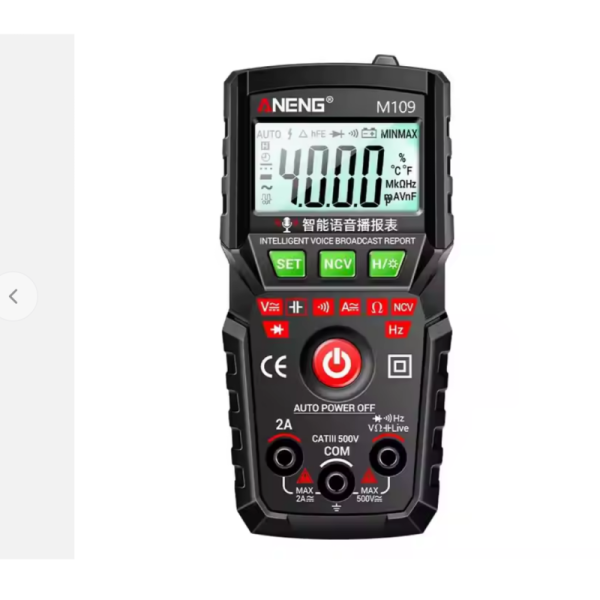

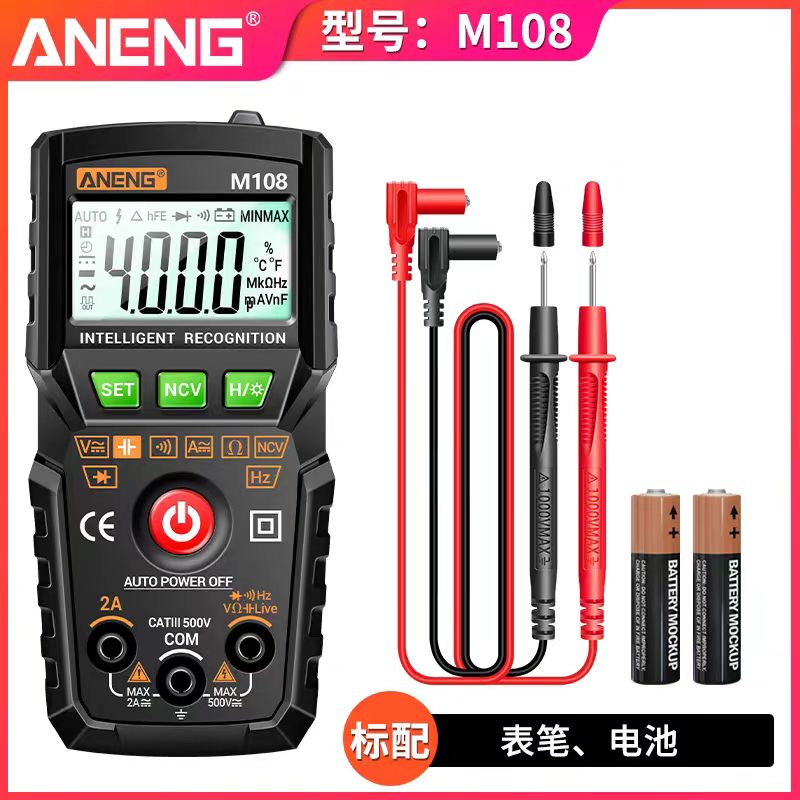

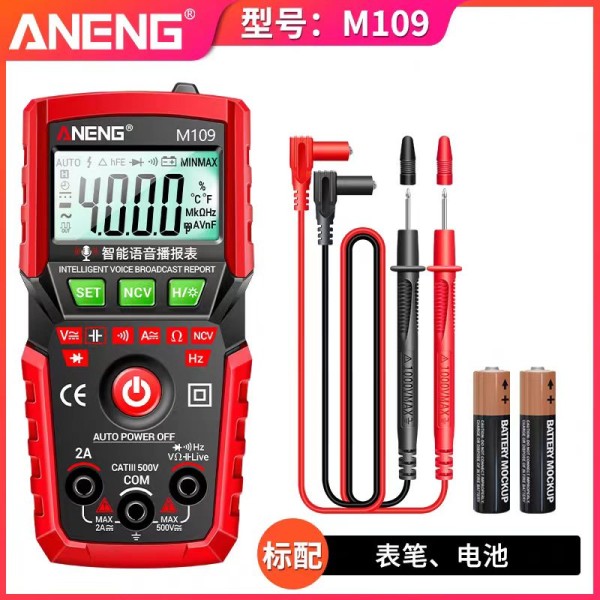

M109 AC/DC Electrical Instrument Tester Automatic Multi-function Digital Mini Multimeter LCD Display Silicone Rubber ABS M108

Name: M109 ACDC Electrical Instrument Tester Automatic Multifunction Digital Mini Multimeter LCD Display Silicone Rubber ABS M108
Brand: Boguan
Price: 6 USD

Quality M109 AC/DC Electrical Instrument Tester Automatic Multi-function Digital Mini Multimeter LCD Display Silicone Rubber ABS M108 for sale

Max. DC Current : 2A

Price : $6-12 / piece

Dimensions : 180g

Low Battery Indicator : Yes

Measuring Resistance Range : 0-20KΩ

Place of Origin : Zhejiang, China

Feature : Standard

Model Number : 109，108

Max. AC Current : 2A

Parameters Measured : Diode

Measuring Inductance Range : 0-4MHz

MOQ : 1 piece

Material : ABS, Silicone Rubber

Max. DC Voltage : 1000 V

Brand Name : Boguan

Application : Industrial Use, Household Use

Max. AC Voltage : 750 V

Accuracy Class : ±(0.5% + 3)

Measuring Voltage Range : 0-500 V

Measuring Current Range : 0-2A

Contact Now

Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.

1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.

PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.

M109 Function Parameter
Functional	Range	Resolution	Accuracy
AC voltage	0V-500V	0.001V-1V	±(1.5%+8d)
DC Voltage	0V-500V	0.001V-1V	±(1.2%+5d)
AC current	0mA-2A	0.1mA-1mA	±(3.0%+8d)
DC current	0mA-2A	0.1mA-1mA	±(2.5%+8d)
Resistance	0KΩ-20.00MΩ	0Ω-10KΩ	±(1.5%+10d)
Capacitance	0nF-40mF	0pF-10uF	±(10%+8d)
Hz	0Hz-4MHz	0Hz-1KHz	±(4.0%+10d)
NCV	√
Diode tube	√
Buzzer	√
Data Hold	√
Automatic Recognition	√
Automatic Shutdown	√
Flashlight	√
Voice Announcements	√
Weight	107.5g	Screen Display	LCD backlit screen
Battery	Two No. 7 batteries	Total length of probe	74cm/29.1in
Material	ABS/Silicone	Probe Material	PVC/brass
Maximum Screen Display	4000 words digital display	Range	automatic
